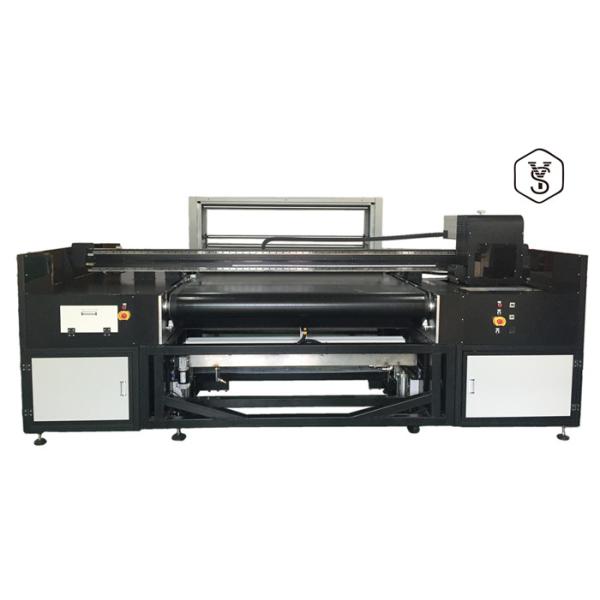

Pigment Industrial Digital Textile Printer , Automatic Textile Printing Machine

Model Number : YS1800

Certification : ISO ,CE

MOQ : 1 set

Price : negotiation

Supply Ability : 10 sets per month

Delivery Time : 20 working days after received deposit

Packaging Details : Packed in wooden case

Print head : 8 pcs ricoh gen5 head

Fabric max.width : 180cm 320cm

Printing max. speed : 120-240m2/h

Ink kind : disperse ,reactive,acid or pigment

Fabric feeding : automatic rolling and taking up

fabric type : all kinds of rayon,nylon,synthetic fiber etc.

Rip software : Neostampa

Printhead cleaning : automatic cleaning,automatic scraping and moisturizing system

Belt cleaning : automatic cleaning brush,rubber scraper &automatic drying system

Data transmission : TCP/IP network interface

dry system : auto belt drying

Contact Now


Pigment High Speed Digital Fabric Printer For Any Kind Of Fabrics



We supply pigment printing production line :

1) pre-coating machine-----2)digital printing machine----3)heating machine




1) Print speed:

Printhead: ricoh 8pcs

600* 1200dpi 120-240sqm/hour

Technical data

Product mode YS1800-8
Print head Industrial head
Fabric conveyance mode Adhesive belt with cleaning and heating systerm
Maximum printing width 1800mm
Maximum printing resolution 600*1200DPI
Printing speed 100-250m2/hour
Print software Neostampa/Texprint (origin)
Ink supply system Peristaltic pump supply,degassing NEG pressure system
Ink Type reactive , disperse or acid ink,pigment
Ink color Cyan,Magenta,Yellow,Black,Orange,Red,Blue, Gray
Dryer unit Hot air cirulation drying
Data transmission TCP / IP network interface
Belt cleaning Automatic Ph celaning,automatic scraping and moisturizing system
Print head clean system Positive pressure and wiper
Power voltage 380V,3-phase-4-wire+G(with independent reliable effective earth wire)
Power frequency 50HZ/60HZ ±1HZ
Power consumption Printer 10kw,dryer 20kw
size 3200*1900*1600mm (l w h)




2) Ricoh gen 5 head specification :

  • 1280 nozzles,integrated heater and the mistor.7-35pl with grey scale



3) main features:

  • textile feeding system flexible for direct printing on most of fabrics.
  • textile software rip with lifelike colors,stylish modern design.
  • 1.8m printing width in roll to roll
  • A reasonable mechanical structure and the stablility of the control system,adopting international famous mechanical parts and electrical parts to ensure stable operation of machine.
  • highly quality prnting achieving vivid colors and images.
  • The stability design ensures continous printing quality,smooth feeding & take-up,unique mechanical structure guarantee and always in a constant tension.
  • roling feeding and auto take-up system
  • The printer itself is equipped with heating system,convenient to print different materials in a timely manner.
  • de-bubbling system and individual negative pressure control
  • auto cleaning and parking system



4) Pigment applications products:

Pigment Industrial Digital Textile Printer , Automatic Textile Printing MachinePigment Industrial Digital Textile Printer , Automatic Textile Printing Machine



5) Question :
1. processing for pigment?
pre coat---digital printing--high tempreture heating
2. pigment ink consumption?
10-12g/m2
3. What’s ripsoftware?
Texprint / Neostampa (origin)
4. cost for per sqmt?
Depend on use which brand pigment ink.send me detail of your requirments ,we will calculate for you.



6) Advantage

  • 15years in digital textile printing
  • 25years in automatic control system.
  • Your requirements, what we concern.From small to big capacity all have.
